20´ Tank Container for Powders
Technical File
[bt_button text="DOWNLOAD" icon="" url="/technical-files/" target="no_target" style="Outline" icon_position="Right" color="Normal" size="Small" width="Normal" el_class="" el_style=""][/bt_button]

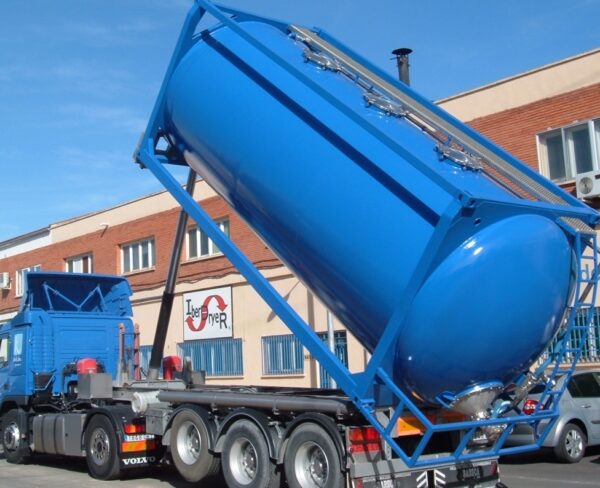

Tank container designed and optimized for intermodal transport of powders such us sugar, flour, semolina and some others: road, rail and deep sea. Thanks to the pressurization system, the discharge procedure can be done easily.
Technical File
DOWNLOAD
Product Description
|
External Dimensions |
6.058 x 2.438 x 2.670 |
|
Applicable regulations |
PED, ISO, CSC, UIC, TIR |
|
Maximum working pressure |
2,00 bar |
|
Test Pressure |
3,00 bar |
|
Intermodal Transport |
Road, railway and deep sea |
|
Maximum Gross Mass |
36.000 Kg |
|
Products |
Sugar, flour, semolina |
|
Tank material |
A304L – A316L |
|
Tank capacity |
25.000 litres |
|
Tare weight |
2.750 kg |
|
Manlids |
3-4 |
|
Additional options |
Collapsible handrail, additional walkways, vibrator. |
